Envysion DVR Installation Instructions

Summary

Envysion installation instructions.

Solution

To install the new Envysion system, the store will need to (1) install the rack mount ENVR, and (2) install the 32-channel encoder in place of the old DVR system. Once complete, contact Envysion Installation Support at [phone] Option 2.

The following items will be delivered to the store:

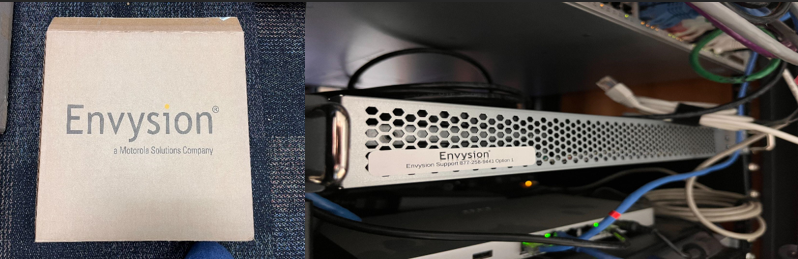

- **8TB Rack Mount EnVR**: This unit is to be installed in the IT Rack, specifically at ports 35/36.

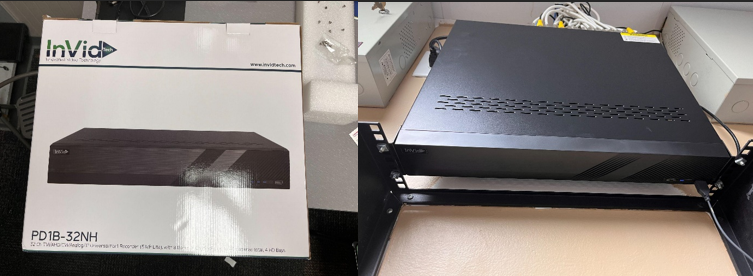

- **32 Channel Encoder**: This device will replace the existing DVR.

**Installation Instructions**:

1. Install the 8TB EnVR within the IT Rack.
2. Connect a monitor and mouse to the EnVR for setup.

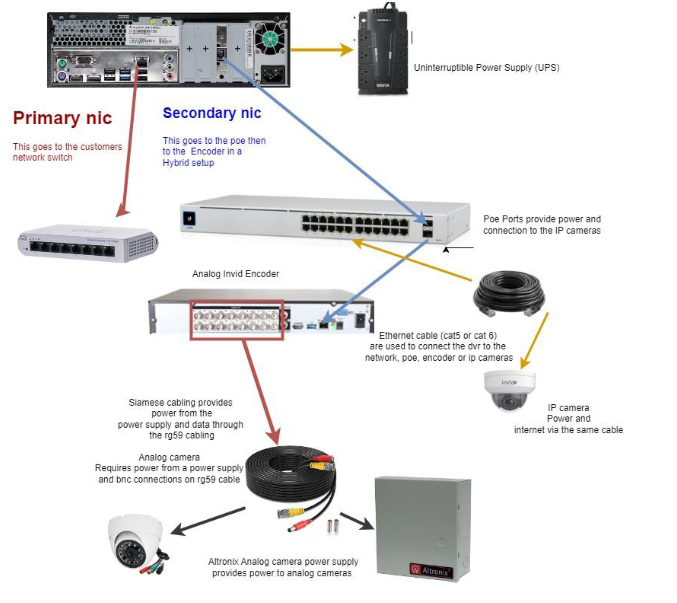

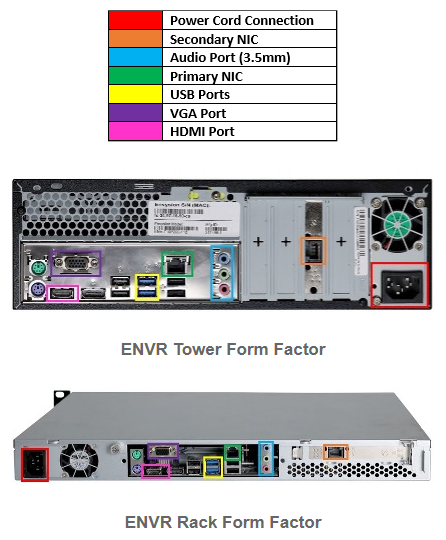

3. Link the CAT 5 cabling from the previous DVR to the secondary NIC of the EnVR.
  - No static IP configuration is necessary; the device will utilize DHCP upon setup.
4. Connect the primary NIC of the EnVR to ports 35/36 on the Cisco switch.
5. Replace the existing DVR with the 32 Channel Encoder.
6. Connect all BNC connections and power supply to the Encoder.
7. Attach the existing CAT 5 cabling to the Encoder, which connects to NIC 2 of the EnVR.
8. Connect the existing VGA cable from the office display monitor to the Encoder.
9. Contact Envysion Installation Support for a 'Check Out' of the installation to ensure all work orders can be closed. Please call 877-258-9441 and select option 2.
