Adjusting the Card Dispenser Lever

Summary

Sometimes when a card gets stuck dispensing, it is because the adjustment lever on the card dispenser is not set to the correct size and the card gets stuck. This document covers how to adjust the lever to match the size of the card.

Solution

To solve this issue, do the following:

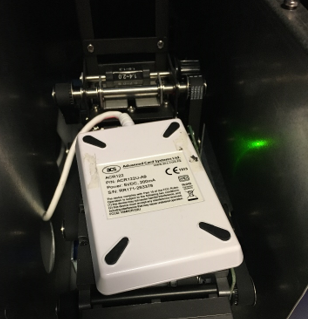

This is the top-side view of the card dispenser.

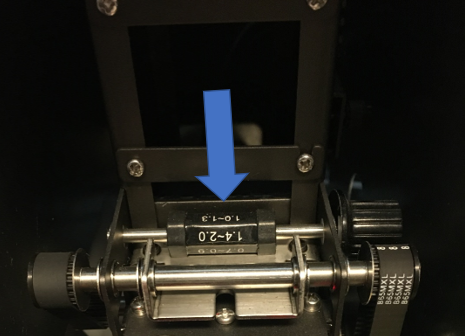

This is the card dispenser lever.

Here are the size ranges available on the lever.

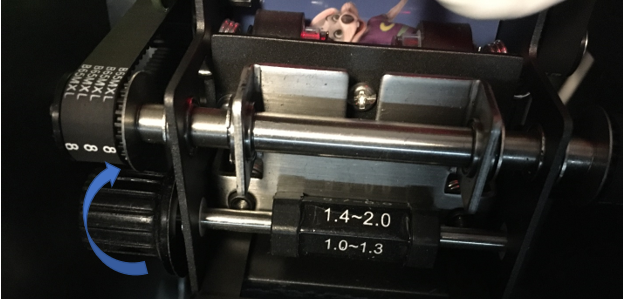

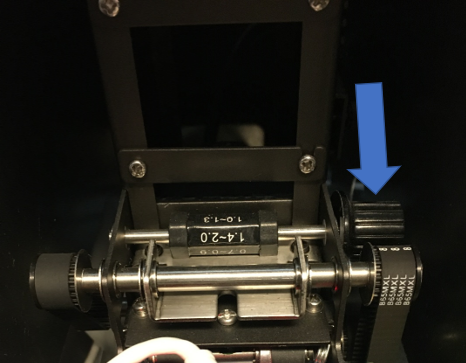

To adjust the size of the card dispenser lever, roll the adjustment bar until the number is in range of the Play Pass cards being inserted.

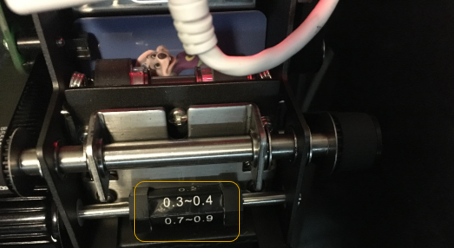

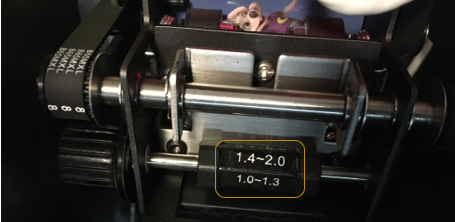

The following pictures show different size ranges to choose from.
